WT-Z10325-45 Glass flat edge & miters edging machine

Author : Angel

Update time : 2021-08-22 12:24:21

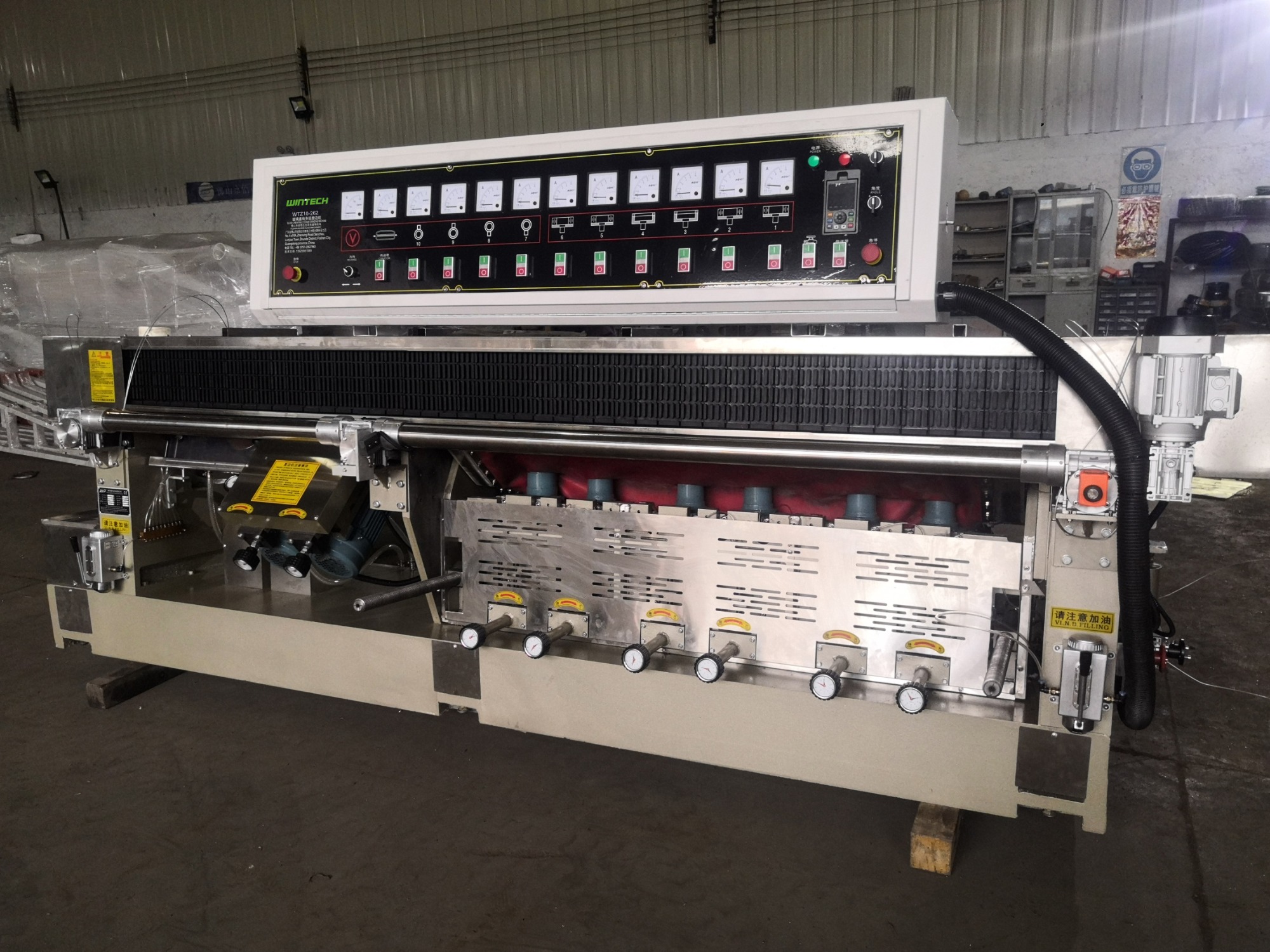

WTZ10325-45 Glass flat edge & miters edging machine

Description:
This WINTECH glass minters machine is designed for grinding/polishing bottom edge and arris of flat glass. 6 wheels for bottom edging can adjust the angle from 0 ~ 60 °,2 wheels for front arris, 2 wheels for back wheels.(we can customize the wheels in different replacement as your production requirement.)
Conveyor adopts chain transmitting system consisting of special stretchy rubber pads. Timing belt transfer glass. The machine has the characteristic of smooth and steady, easy to operation and maintenance, Glass thickness automatically adjustable.

WTZ10325-45 Wheels placement

Grinding head Name Data		Grinding head 1# rough grinding	Grinding head 2# rough grinding	Grinding head 3# Fine grinding	Grinding head 4# polishing	Grinding head 5# polishing	Grinding head 6# polishing	Grinding head 7# angle grinding	Grinding head 8# Angle polishing	Grinding head 9# polishing	Grinding head 10# polishing
motor	Power(KW)	2.2	2.2	2.2	2.2	2.2	2.2	1.5	1.5	1.5	1.5
motor	Speed	2800	2800	2800	2800	2800	2800	2800	2800	2800	2800
Grinding wheel	Spec (mm)	Ф150×12 100 mesh	Ф150x12 240 mesh	Ф150×12 320mesh	Ф150	Ф150	Ф150	Ф130x60 240 mesh	10S40	Ф130x60 240 mesh	10S40
Grinding wheel	Name	Diamond wheel	Diamond wheel	Resin wheel	10S40 Polishing wheel	10S90 Polishing wheel	X088 Polishing wheel	Resin wheel	10S40 Polishing wheel	Resin wheel	10S40 Polishing wheel
