WT-X261 GLASS BEVELING MACHINE

Description:

WT-X261 Glass straight-line beveling machine is used for grinding the bevel and bottom edge of glass with different size and thickness,and rough grinding,fine grinding and polishing for bevel and bottom edge grinding can be completed in one time.Same thickness of glass sheet can be process continually. The brightness of finished surface will be almost the same as glass itself. The processing speed is adjustable with a step-less motor which offers a wide range of speed selection.Input and output conveyor adopt timing belt which can improve the transmission precision.It is mainly suitable for grinding architecture glass, household appliance glass.can be used to process inlay glass,Spell mirror glass,Craft glass etc.

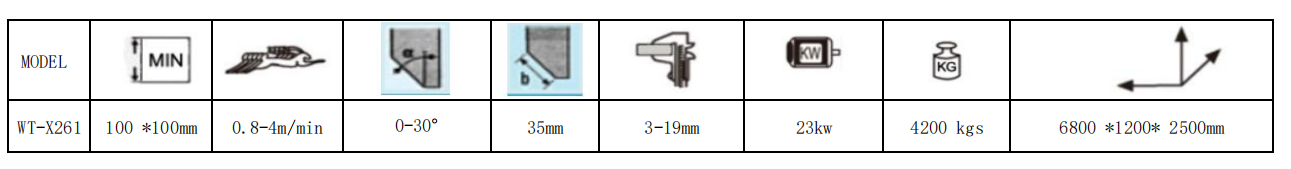

                                                                  WT-X261 Technical Parameters


                                                                      Specification of wheels:


Grinding head   Name     data		Grinding head 1# rough grinding	Grinding head 2# rough grinding	Grinding head 3# rough grinding	Grinding head 4# fine grinding	Grinding head 5# fine grinding	Grinding head 6# fine grinding	Grinding head 7# fine grinding	Grinding head 8# polishing	Grinding head 9# polishing
Motor	Power（KW）	2.2	2.2	2．2	2．2	2．2	2．2	2.2	1.5	1.5
	Speed	2800	2800	2800	2800	2800	2800	2800	1400	1400
Grinding wheel	Spec（mm）	Ф150×22    100 mesh	Ф150×22 240 mesh	Ф175×22    180 mesh	Ф150×22	Ф150×22	Ф150×22	Ф150×12	Ф150×12	Ф150×12
	Name	Diamond wheel	Diamond wheel	PE wheel	Resin wheel	Resin wheel	Resin wheel	10S60	Felt wheel	Felt wheel
	From	China	China	China	China	China	China	Import	Import	Import
