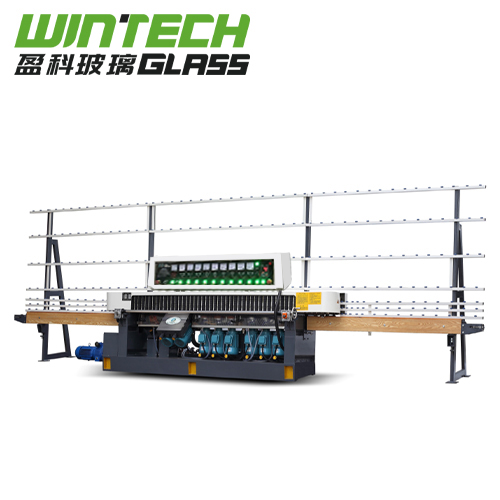

WT-10325 10 Motors Glass Straight Line Edging Machine

PRODUCT DESCRIPTION



♦ Glass straight line flat grinding machine WTZ-10325 with 10 motors, It's suitable for processing straight line edging & 45° arris on flat glass sheet with various se size and thickness.
♦ Manual control to adjust the glass thickness, working speed and edge removal.
♦ Coarse grinding, fine grinding, polishing and chamfering can be completed in one time. It can process the glass edge as bright as the glass itself.
♦The base, front and rear beams, pedestal, and grinding heads are of casting materials (annealed to prevent deformation), which can bear large loads and has stable performance.
♦ It is the best glass grinding equipment for processing furniture glass, building glass and architecture glass.



TECHNICAL SPECIFICATIONS



Number of Spindles	10pcs
Max. Glass size	3000×3000mm
Min. Glass size	80×80mm
Glass thickness	3-25mm
Transmission speed	0.5-6m/min
Weight	3000kg
Land occupation	7700×1000×2500mm
Total Power	23KW
Voltage/Frequency	380V/50HZ or as customized

WHEELS PLACEMENT:




Grinding head	Name	Specification	Function
No. 1	Diamond wheel	Ф150×12 100 mesh	Rough grinding for bottom edge
No. 2	Diamond wheel	Ф150×12 240 mesh	Fine grinding for bottom edge
No. 3	Resin wheel	Ф150×12 240 mesh	Fine grinding for bottom edge
No. 4	10S40 wheel	Ф150x70	Polishing for bottom edge
No. 5	10S60 wheel	Ф150x70	Polishing for bottom edge
No. 6	X098 wheel	Ф150x70	Polishing for bottom edge
No. 7	Resin wheel	Ф130×12 240 mesh	Rough grinding for front chamfer
No. 8	Stone wheel	Ф130×12 240 mesh	polishing for back chamfer
No. 9	Resin wheel	Ф130×12 240 mesh	Rough grinding for back chamfer
No. 10	Stone wheel	Ф130×12 240 mesh	polishing for back chamfer

PROCESSED GLASS SAMPLES:







PACKING & LOADING PICTURES:

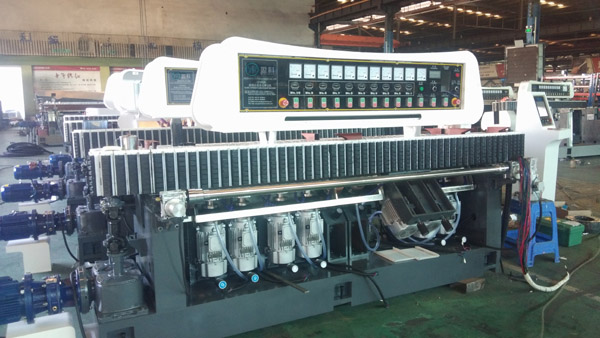

MACHINES IN PRODUCTION :















Foshan WINTECH Glass Machinery Co.,Ltd is a science and high-tech glass equipment company Specializing in the various types of glass deep-processing equipments，such as glass bevel edging,glass straight line grinding,glass sandblasting,glass washing,glass drilling,glass cutting, glass purging,glass shape edging,glass mitering,glass double edging,etc.
We always committed to provide the comprehensive service to global glass processers, with glass processing scheme, grinding capacity planning ,glass equipment and consumptive material supply, installation and maintenance.   WINTECH is achieve win-win coopertion between platforms.
