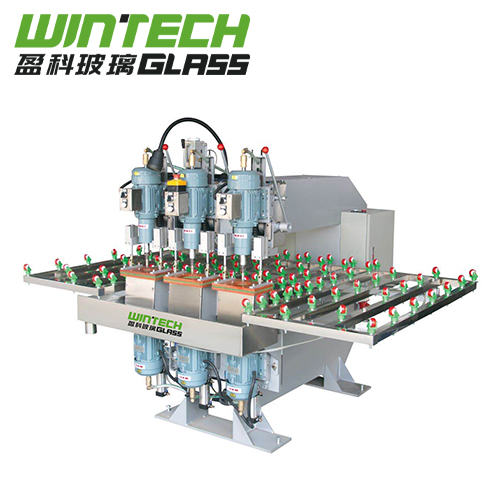

WT-ZK3 Three heads glass drilling machine

Item No.: WT-ZK3
Glass Drilling Machine fixes the glass pneumatically and drill with the upper and lower, 3 pairs of double drill bits. The pneumatic working table for supporting large size glass is equipped with high efficiency and easy operation. It is one of the indisp
INQUIRY
Description Brand Introduction

General Description:

Glass Drilling Machine fixes the glass pneumatically and drill with the upper and lower, 3 pairs of double drill bits.
The pneumatic working table for supporting large size glass is equipped with high efficiency and easy operation.
 It is one of the indispensable machines in modern glass industry.


I. Main technical data:
1. Voltage: 380V/50HZ
2. Drilling Diameters: φ4-φ 80mm
3. Max size: 2500*2500 mm
4. Glass Thickness: 3~25 mm
5. Power: motor 1.1Kw*6
6. Weight: 800 kgs
7. Working table size: 1100*620mm
8. Size (LxWxH): 2200*2200*1750mm

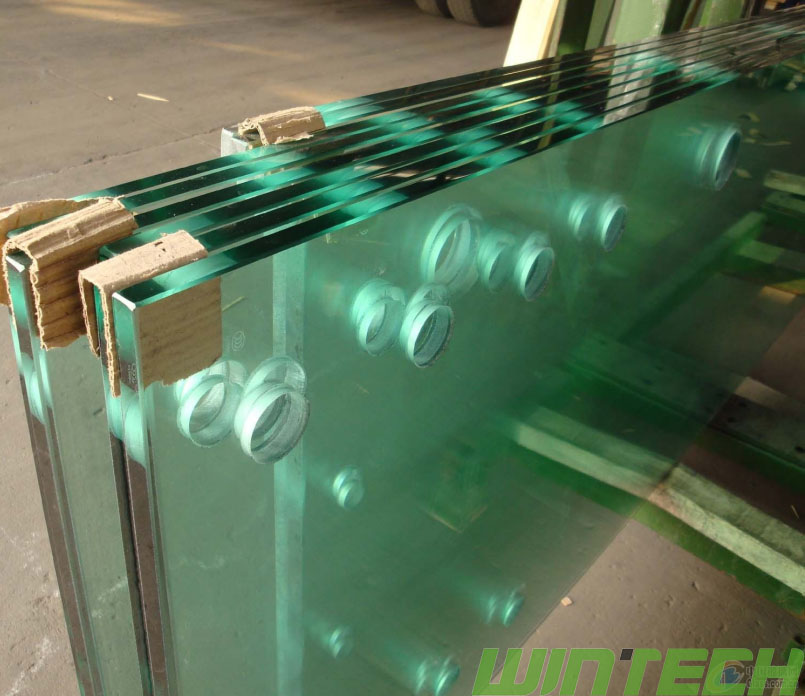

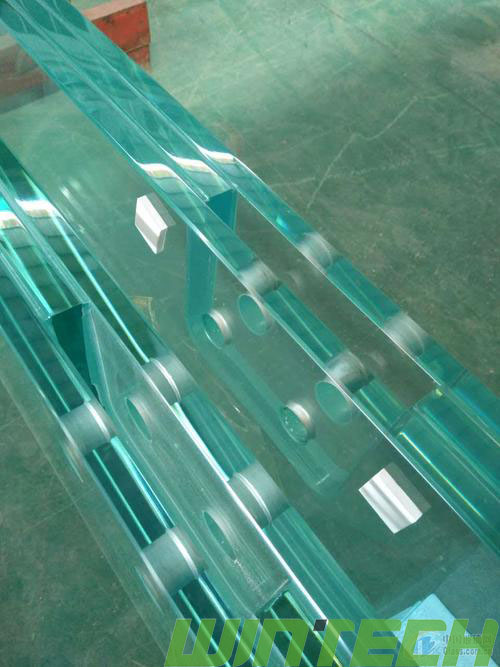

Glass Sample Pictures:

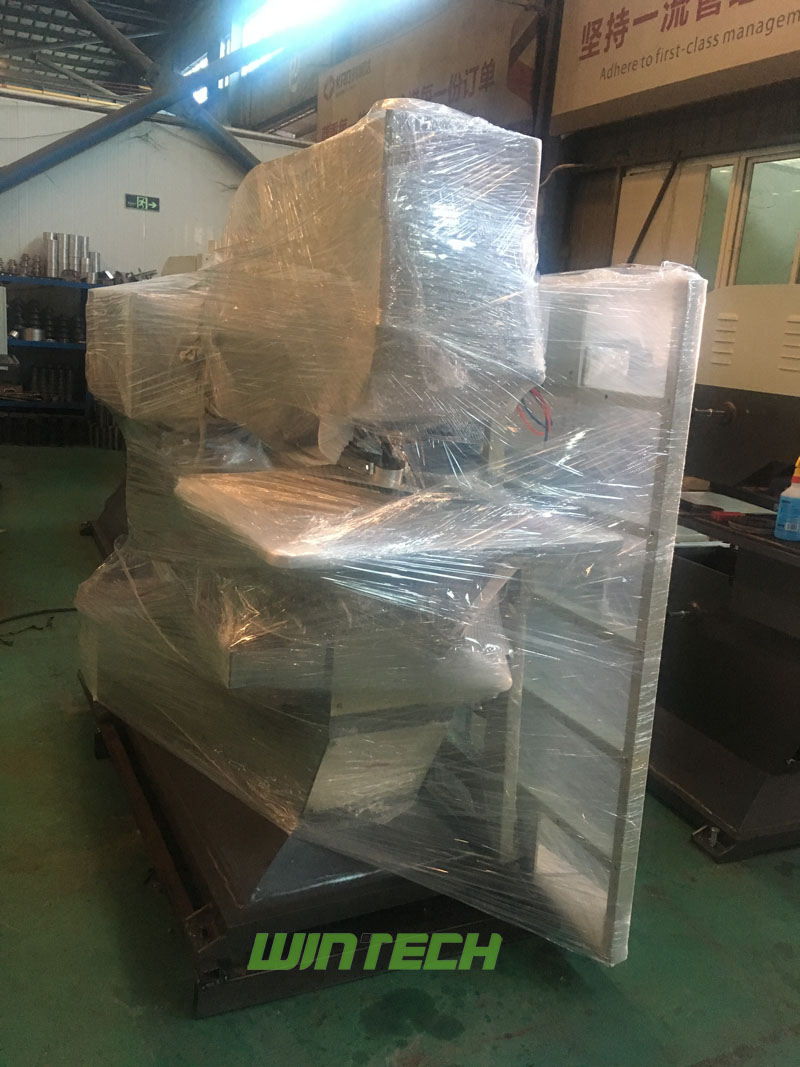

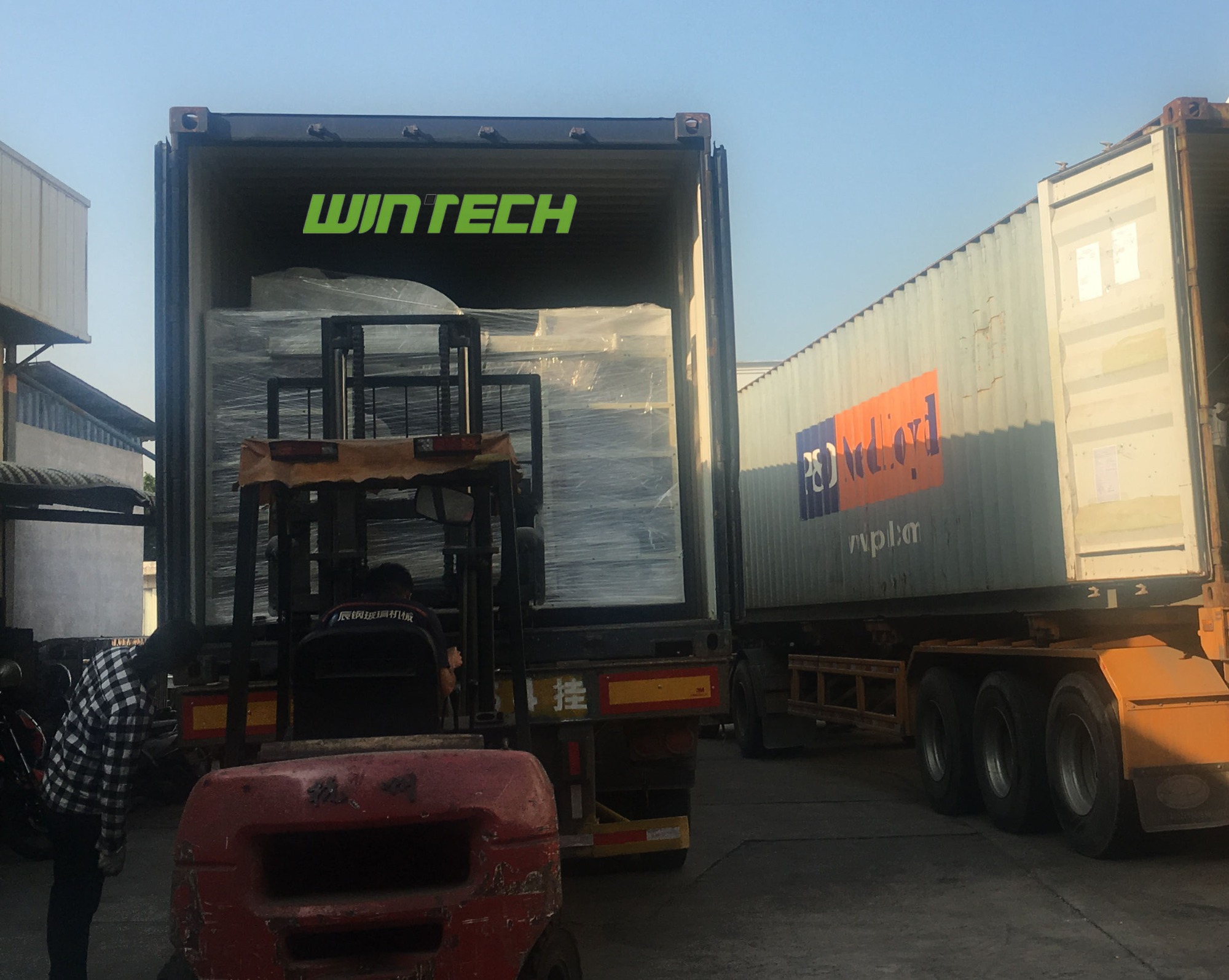

Machines packing & Loading:






Please leave your meassage if you want the offer of this machine, we will reply you within 24 hours.
Thank you for your attention!
