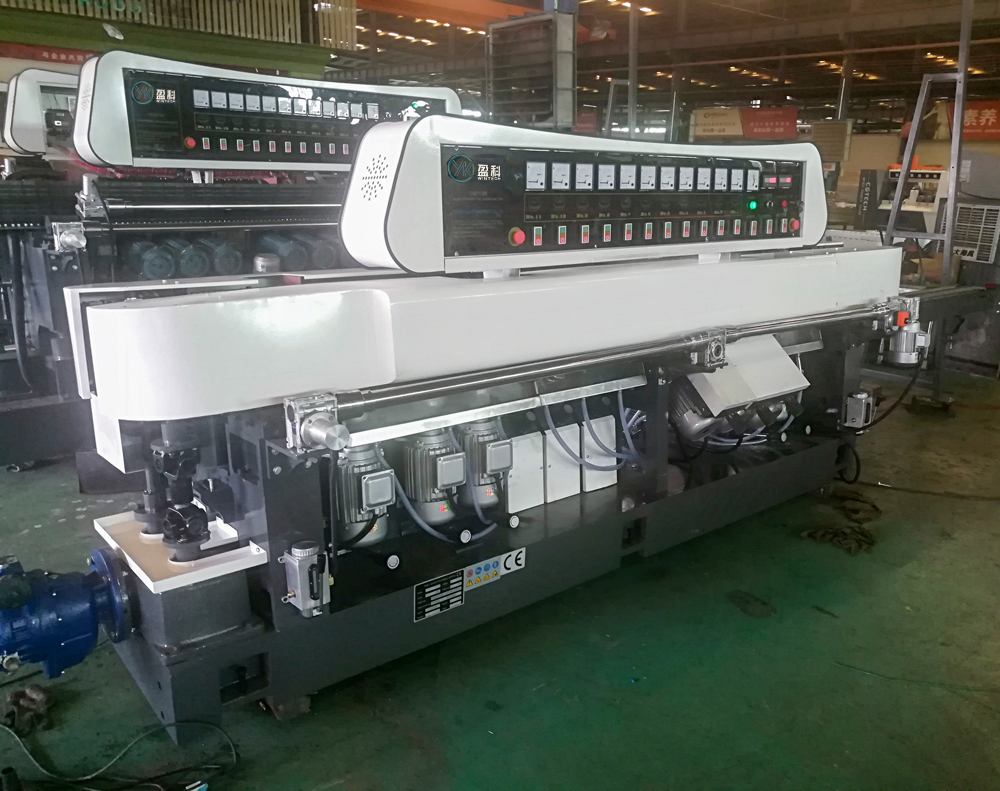

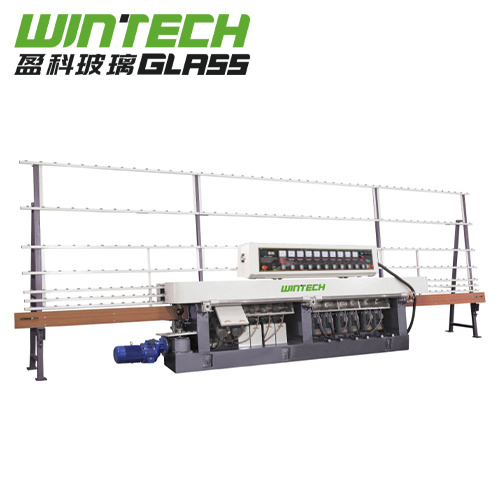

WTZ-12325 glass edging machine

PRODUCT DESCRIPTION



♦ Glass straight line flat grinding machine #WTZ 12325 with 12 motors, It's suitable for processing straight line edging & 45° arris on flat glass sheet with various se size and thickness.

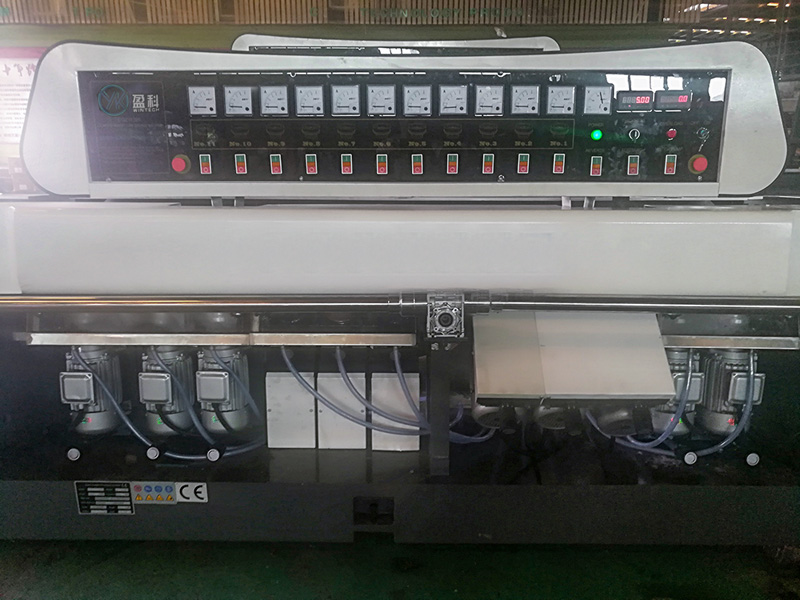

♦ Manual control to adjust the glass thickness, working speed and edge removal.
♦ Coarse grinding, fine grinding, polishing and chamfering can be completed in one time. It can process the glass edge as bright as the glass itself.
♦The base, front and rear beams, pedestal, and grinding heads are of casting materials (annealed to prevent deformation), which can bear large loads and has stable performance.
♦ It is the best glass grinding equipment for processing furniture glass, building glass and architecture glass.



TECHNICAL SPECIFICATIONS



Number of Spindles	12 pcs
Max. Glass size	3000×3000mm
Min. Glass size	80×80mm
Glass thickness	3-25mm
Transmission speed	0.5-6m/min
Weight	3700kg
Land occupation	8200×1000×2500mm
Total Power	28KW
Voltage/Frequency	380V/50HZ or as customized

WHEELS PLACEMENTS:






Processed Glass Samples:







PACKING  AND LOADING PICTURES:






Production Pictures:
