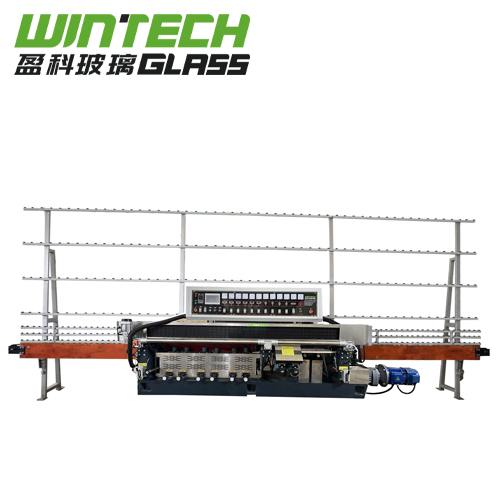

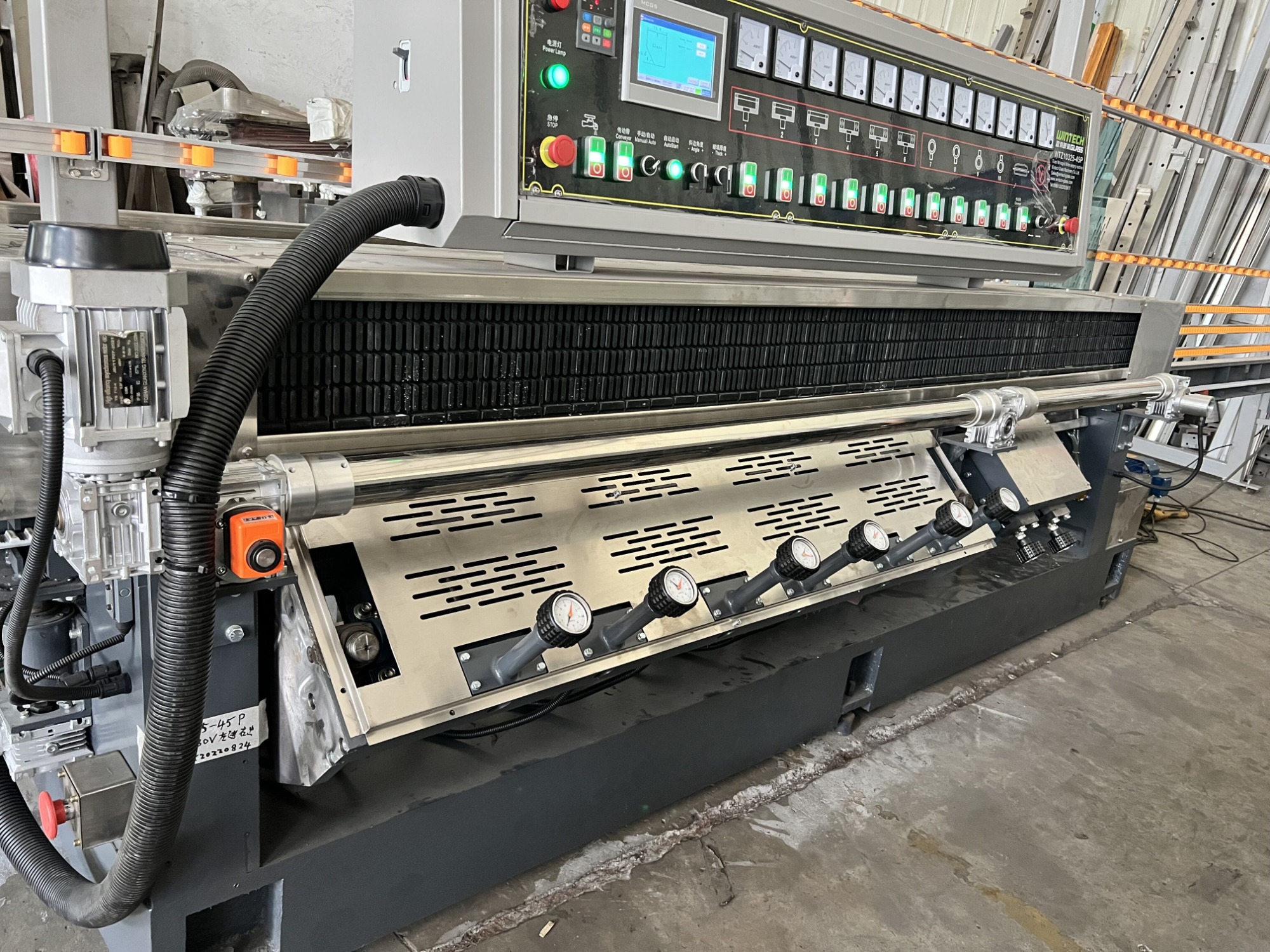

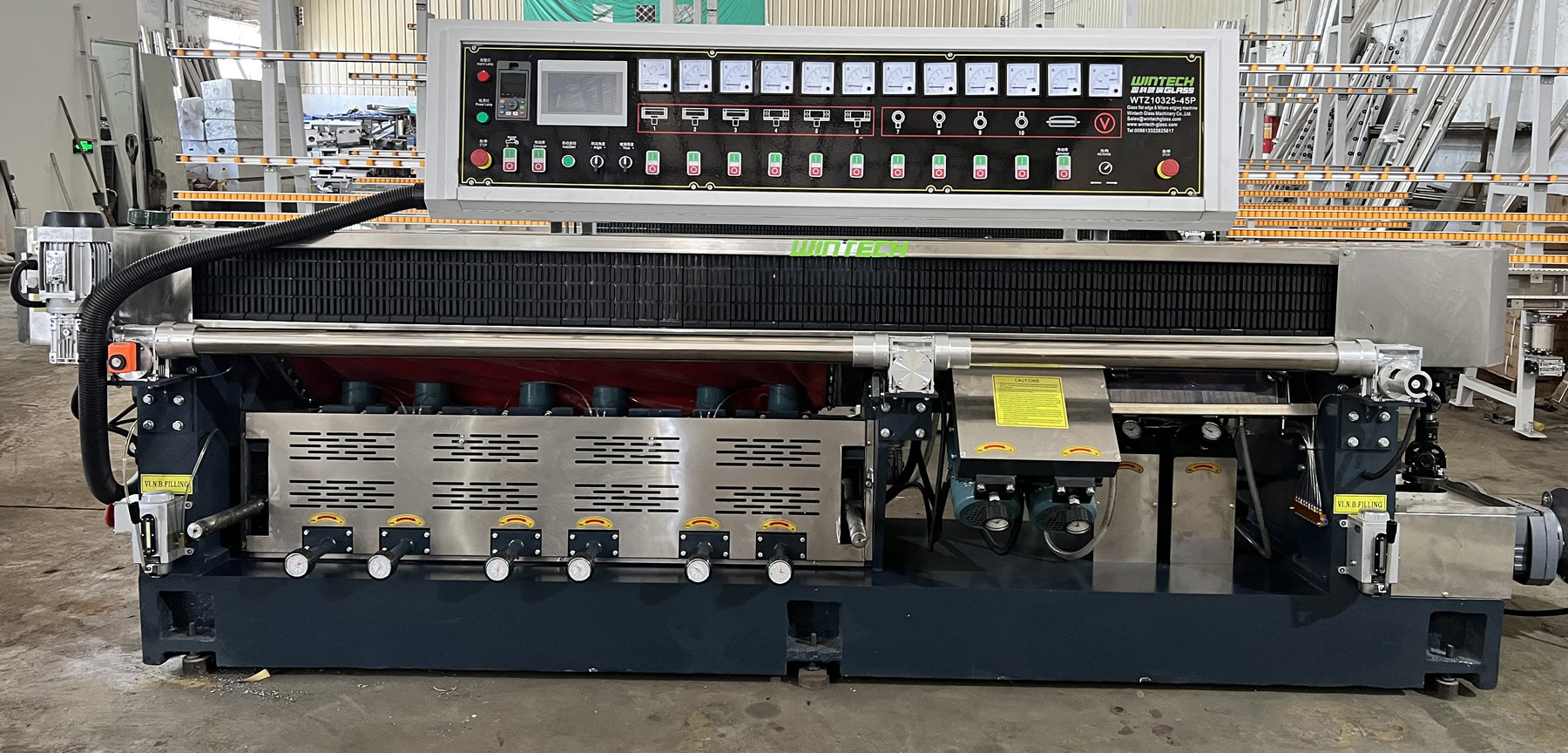

WTZ10325-45° Glass flat edge & miters edging machine

PRODUCT DESCRIPTION



♦ Glass mitering edging machine WTZ10325-45° with 9 motors.It's suitable for grinding flat glass with arris,variable angle and 45° edging.6 motors from front beam can adjustable 0~45° and as a whole to move in/our to achieve angle adjustment.
♦ Coarse grinding,fine grinding, polishing and chamfering can be completed in one time.It can process the glass edge as bright as the glass itself.
♦ The base,front and rear beams,pedestal,and grinding heads are of casting materials (annealed to prevent deformation),which can bear large loads and has stable performance.
♦ With reasonable design,and high precision processing.It is the best glass grinding equipment for processing the mass production of craft glass,home appliances glass,decoration and furniture glass,doors and architecture glass.



TECHNICAL SPECIFICATIONS



Number of Spindles	10PCS
Max. Glass size	3000×3000mm
Min. Glass size	80×80mm
Glass thickness	3-25mm
Transmission speed	0.5-6m/min
Max. Hypotenuse width	30mm
Working height	750mm
Bevel angle	0~45°
Weight	3500kg
Land occupation	7800×1000×2500mm
Glass diagonal error	0.5mm/m
Glass parallelism error	0.3mm/m
Total Power	21kw
Voltage/Frequency	380V/50HZ or Customized

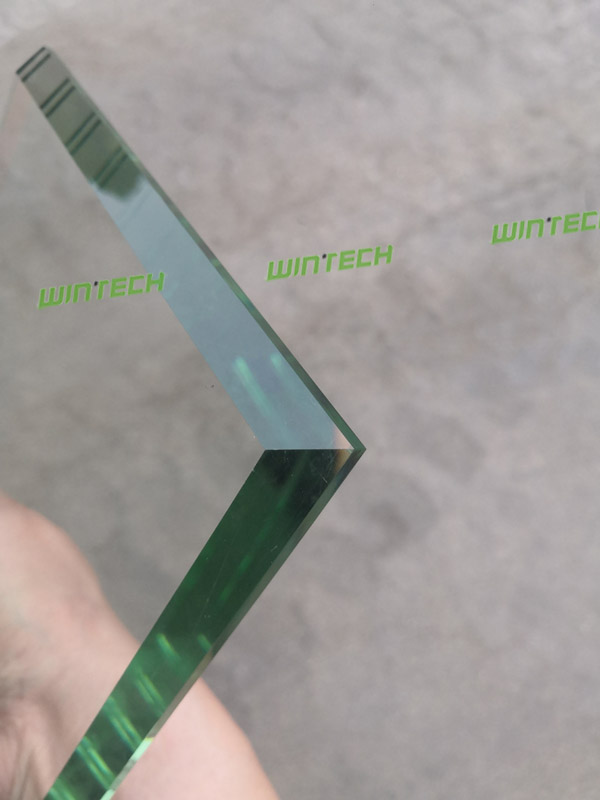

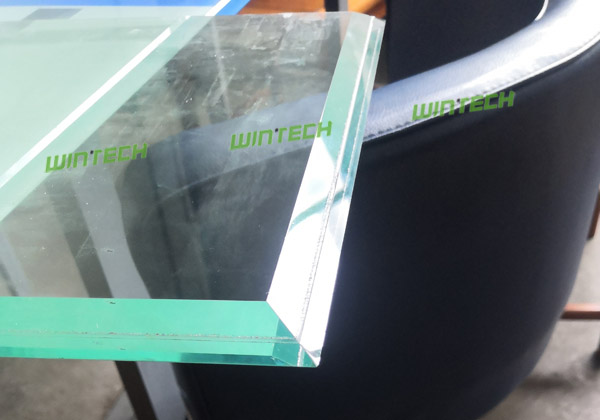

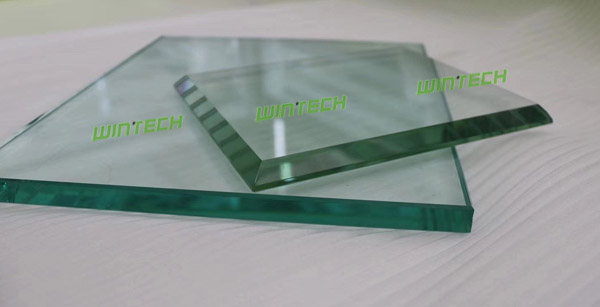

PROCESSED GLASS SAMPLES:

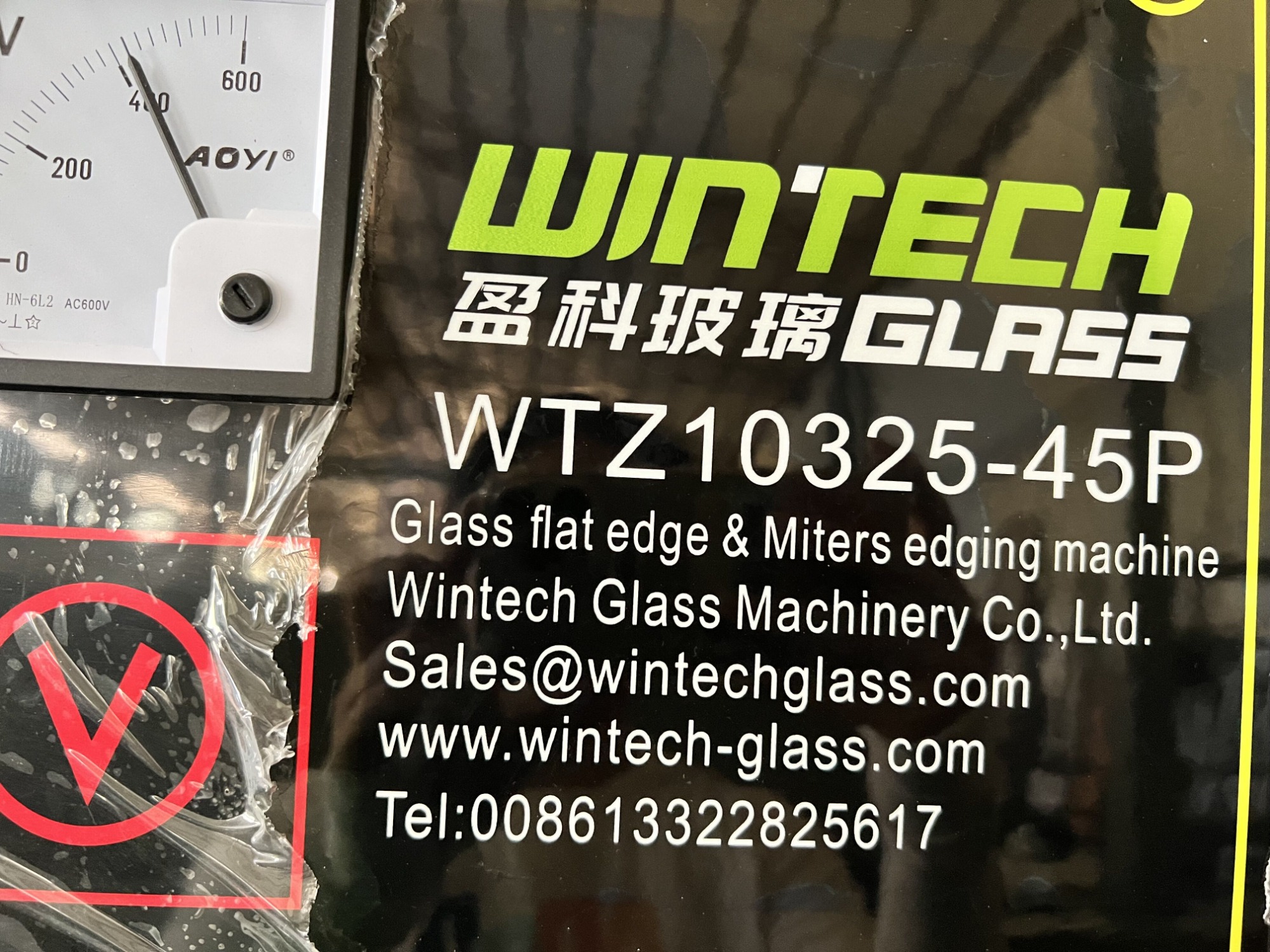

PACKING & LOADING PICTURES:

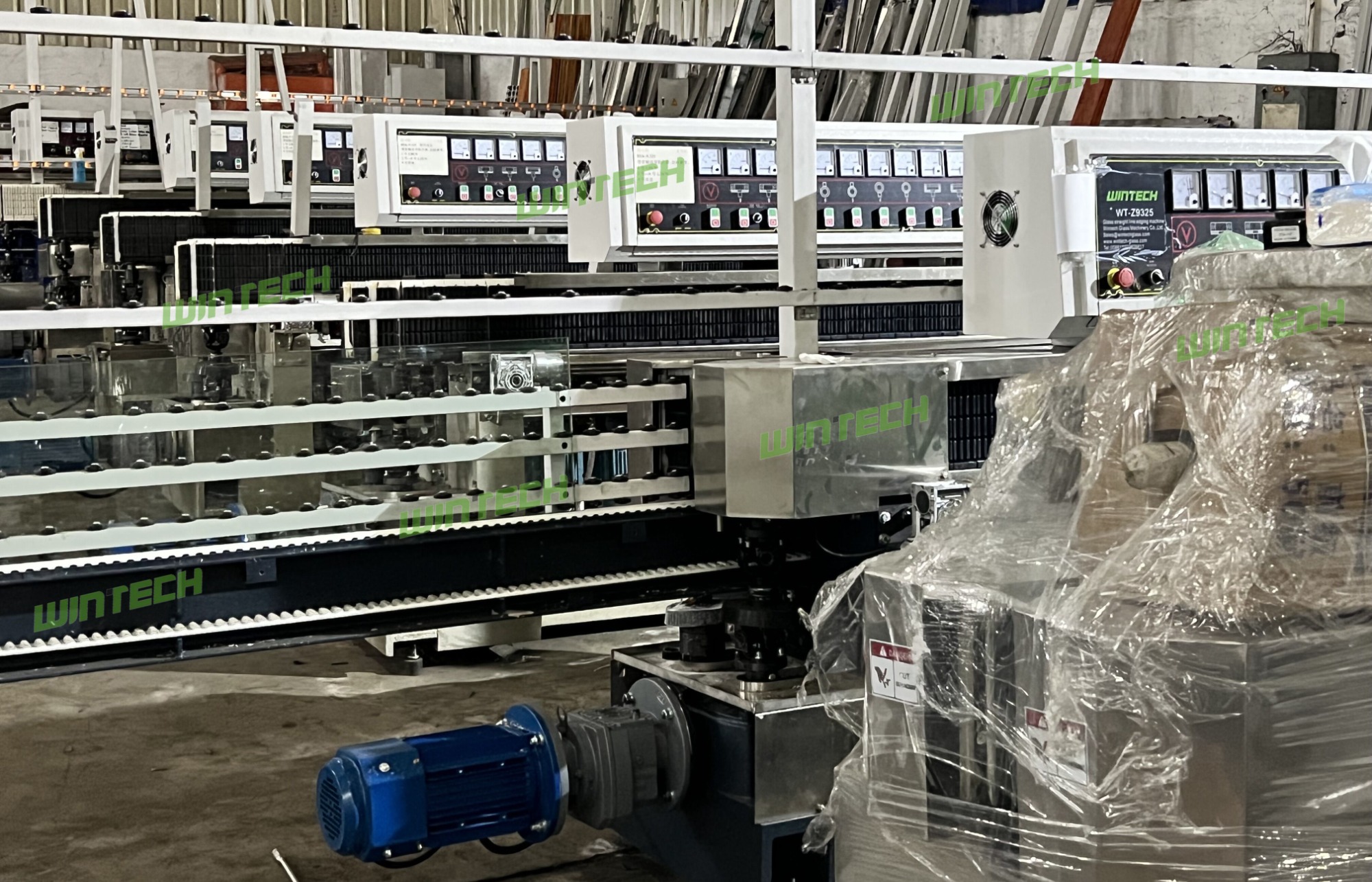

Workshop Pictures:
