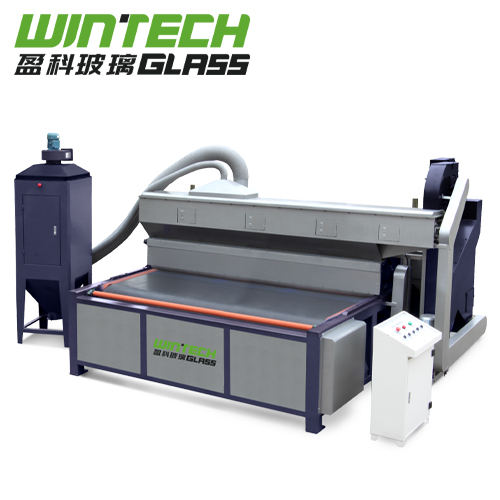

WTPS-2000H Automatic Horizontal glass sanding machine
WTPS-2000H Automatic Horizontal glass sanding machine

WTPS-2000H Automatic Horizontal glass sanding machine

INQUIRY
Description brand introduction

  DESCRIPTION :

In daily life, we often see that the surface of some glass is slightly rough, matt, and some have beautiful patterns and patterns. Then the machine that handles this effect is called a glass sanding machine (also called a glass sanding machine). Glass sandblasting machine, glass sandblasting machine), the name is different, the function is similar.


  PARAMETER:
S/N. Specification Unite Date
1 Glass thickness mm 2-21
2 Max.glass mm 2500
3 Machine size mm 2600
4 Feeding speed【frequency】 Mm/min 200-1000
5 Sandblisting tool pcs 8
7 Working height mm 800
9 Motor power KW 9.9
10 Size（L×W×H） mm 3500*3500*2000
11 Machines Weight kg 3500
12 The finest sand can make Mesh 60
13 Maximum processing efficiency M²/h 100  【according to the processing speed of 60 Mm/min and Max glass size in 2500mm 】
14 Air compressor None


Main configuration of sanding machine:

2.1) Sanding system:
1, full-quality cast iron bearing, TWB and other top brand bearings. Stable quality and high precision.
2, 40Cr material spindle grinding machine processing, stable and high precision.
3, 8+5mm ultra-thick large arc plate, more rigid.
2.2) Sand sweeping system:
1, the foot 3MM steel plate body.
2. Full casting pulley.
3, special belt brush, durable.
2.3) Sand leakage system:
1. The miner's special 6-3 coil sand shaft has almost no wear.
2. 3 layers of dustproof structure, low failure rate.
2.4) Electric control system:
1, frequency converter speed regulation, split type operation is convenient.
2, full Deli West Electric, stable and durable.
Fan Motor: Guangdong Yutong, a domestic first-class brand.


DETAILS PICTURE:



















Foshan WINTECH Glass Machinery Co.,Ltd is a science and high-tech glass equipment company Specializing in the various types of glass deep-processing equipments，such as glass bevel edging,glass straight line grinding,glass sandblasting,glass washing,glass drilling,glass cutting, glass purging,glass shape edging,glass mitering,glass double edging,etc.
We always committed to provide the comprehensive service to global glass processers, with glass processing scheme, grinding capacity planning ,glass equipment and consumptive material supply, installation and maintenance.   WINTECH is achieve win-win coopertion between platforms.
