WTX-261P glass beveling machine with PLC

PRODUCT DESCRIPTION

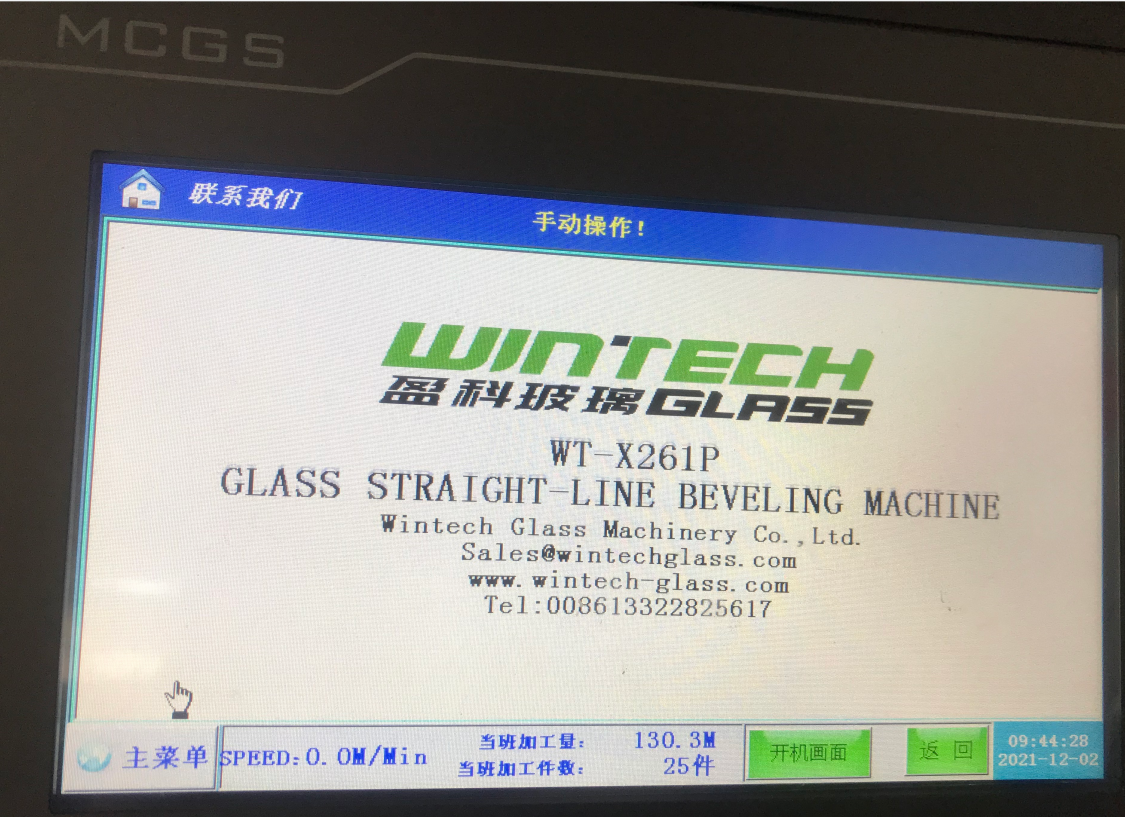

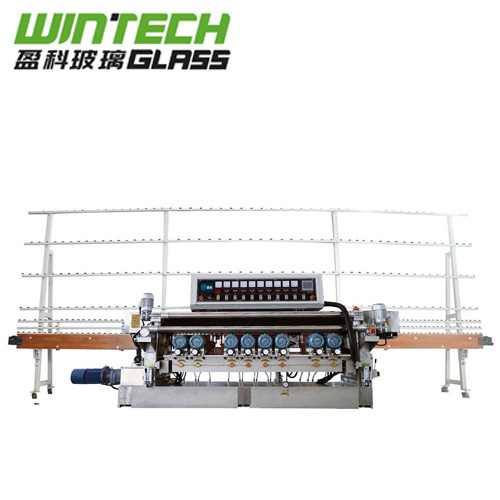

♦ Glass straight line beveling machine #WTX-261P with 9 motors, and with PLC control, which is suitable for processing bevel & bottom edge of glass sheet with different size and thickness.
  It is the most popular model for processing mirrors.
♦ Coarse grinding,fine grinding,polishing and chamfering can be completed in one time,ensuring.The accuracy and polishing brightness achieving to the mirror effect.
♦ The base, beam, swing frame,upright column and Grinding head are of casting materials(annealed to prevent deformation).They have extreme resistance to abrasion and deformation,as well as the best shock absorbing properties.

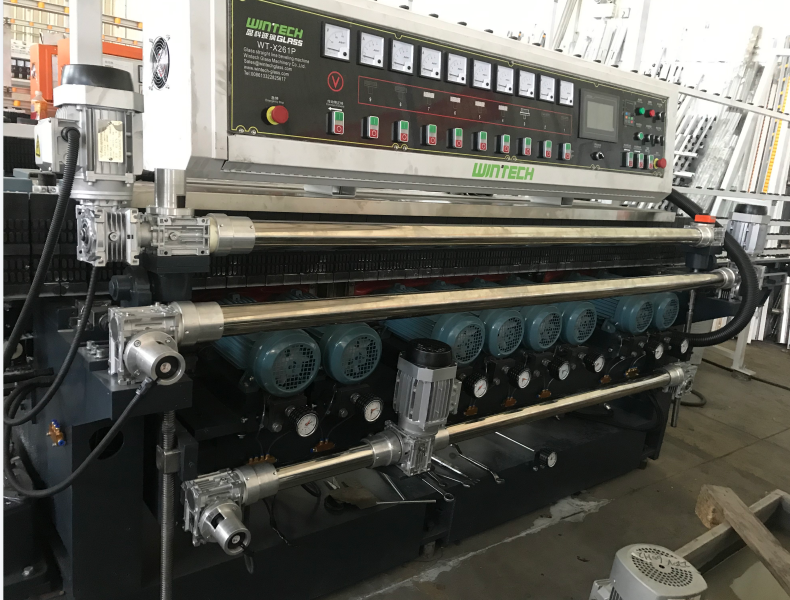

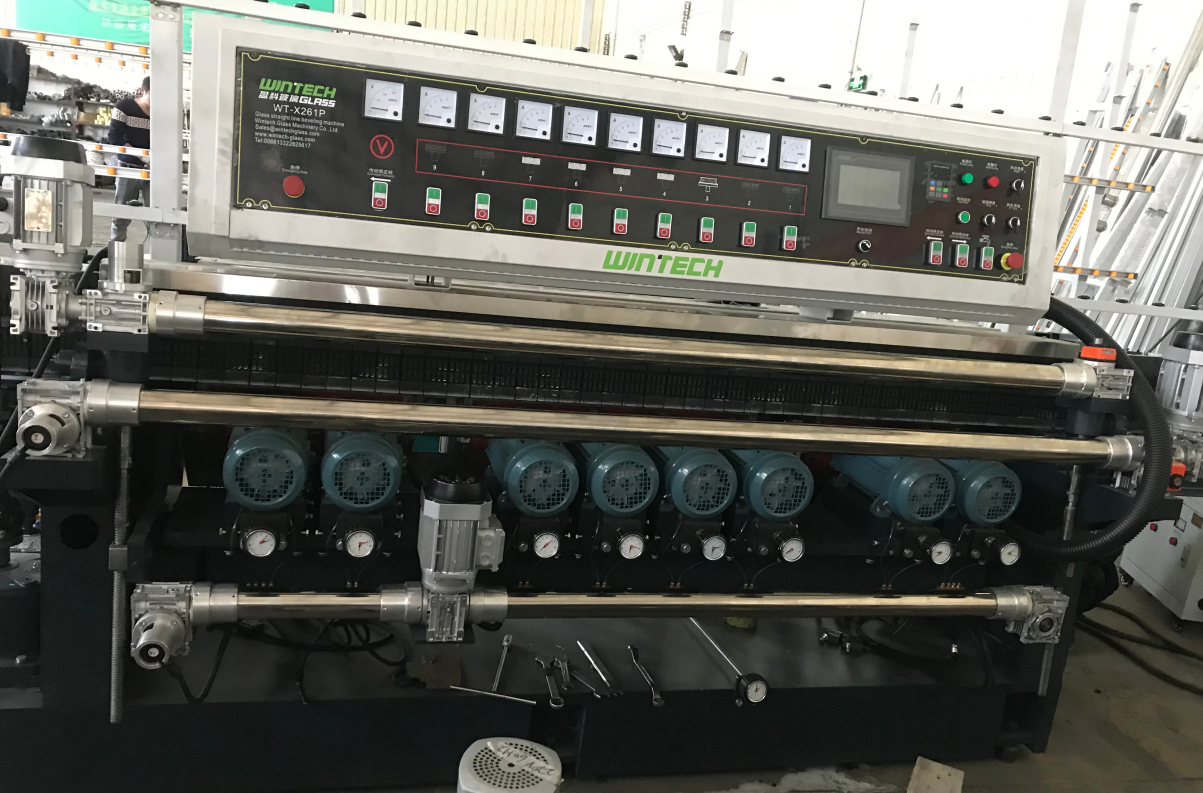

♦ The beveling grinding head motor is from the international brand: ABB,Electric is from Schneider,and it also has Aluminum alloy scaffolding line and Synchronous belt transmission.
♦ It is the best glass grinding equipment for processing craft glass,decoration and furniture glass,doors and windows,bathroom mirror and cosmetic mirror,it is a machine with multi-use

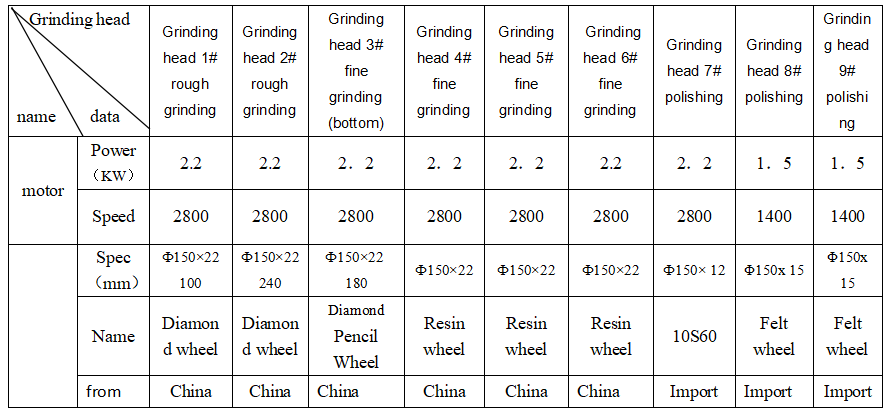

TECHNICAL SPECIFICATIONS
