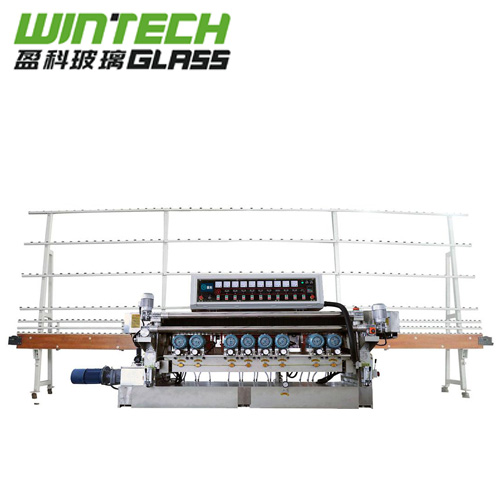

WTX-261 glass beveling machine

PRODUCT DESCRIPTION

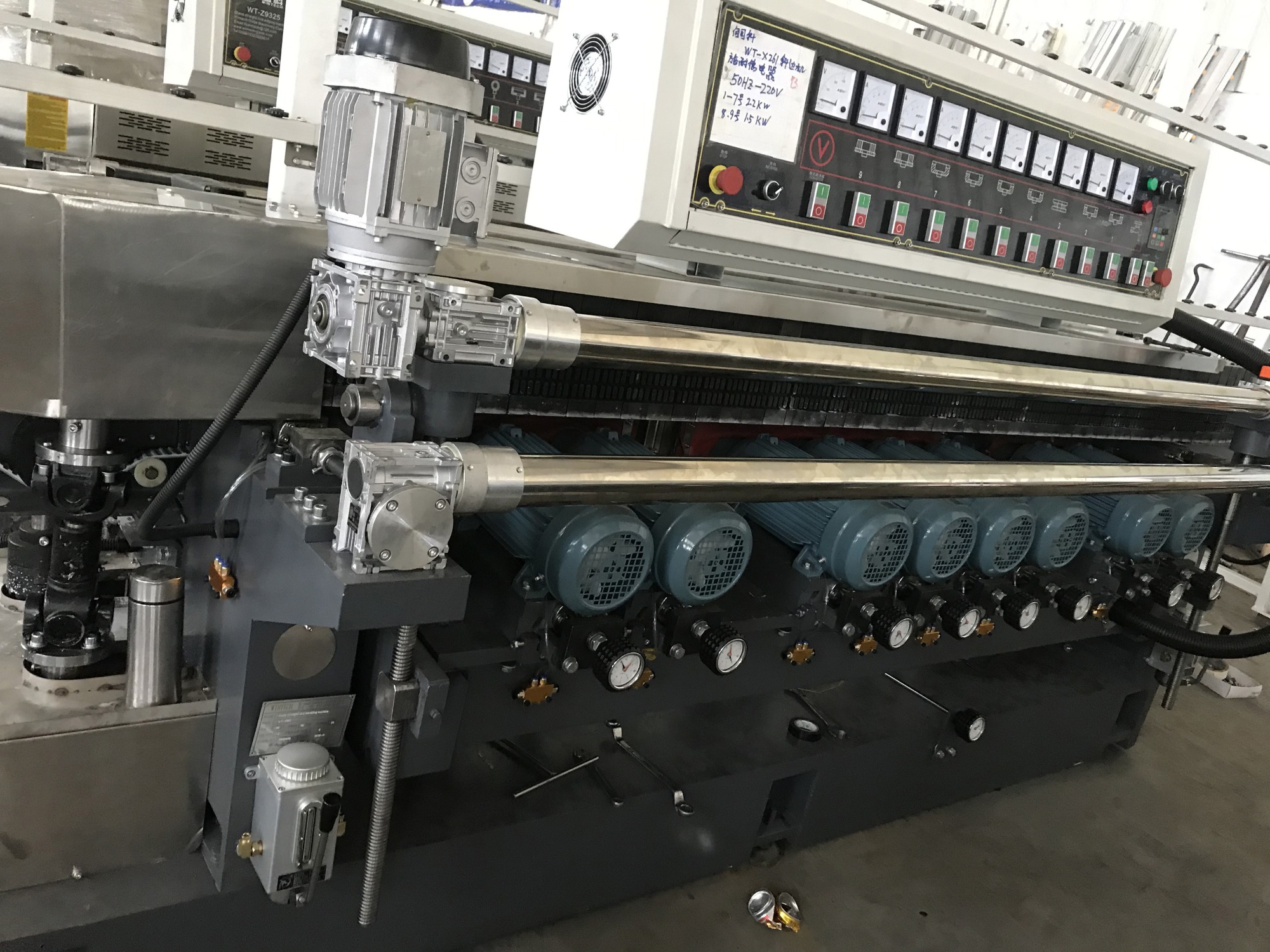

♦ Glass straight line beveling machine #WTX-261 with 9 motors, which is suitable for processing bevel & bottom edge of glass sheet with different size and thickness.
  It is the most popular model for processing mirrors.
♦ Coarse grinding,fine grinding,polishing and chamfering can be completed in one time,ensuring.The accuracy and polishing brightness achieving to the mirror effect.
♦ The base, beam, swing frame,upright column and Grinding head are of casting materials(annealed to prevent deformation).They have extreme resistance to abrasion and deformation,as well as the best shock absorbing properties.
♦ The beveling grinding head motor is from the international brand: ABB,Electric is from Schneider,and it also has Aluminum alloy scaffolding line and Synchronous belt transmission.
♦ It is the best glass grinding equipment for processing craft glass,decoration and furniture glass,doors and windows,bathroom mirror and cosmetic mirror,it is a machine with multi-use

TECHNICAL SPECIFICATIONS



Number of Spindles	9 pcs
Max. Glass size	2500×2500mm
Min. Glass size	100×100mm
Glass thickness	3-19mm
Transmission speed	0.5-6m/min
Max. Hypotenuse width	45mm
Bevel angle	0~30°
Weight	4200kg
Land occupation	6700×1300×2500mm
Glass diagonal error	≤0.5mm/m
Glass parallelism error	≤0.3mm/m
Total Power	23kw
Voltage/Frequency	380V/50HZ or Customized

WHEEL'S PLACEMENT:



Processed Glass Samples:






Machines Packing  & Loading:







Workshop Pictures:
