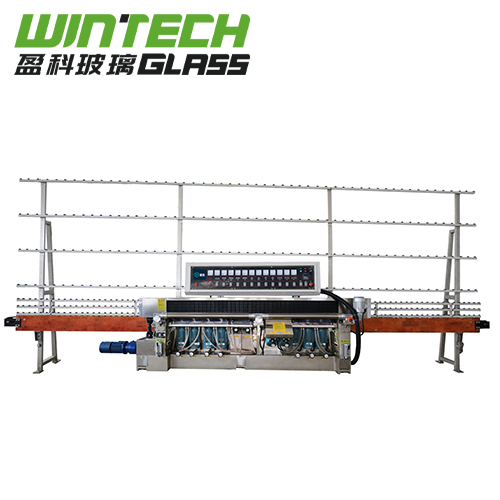

FX22 9 Motors Glass Straight Edging Machine

Description:
The machine is designed for grinding/polishing bottom edge and arris of flat glass. 5 wheels for bottom edging,2 wheels for front arris, 2 wheels for back wheels.
Conveyor adopts chain transmitting system consisting of special stretchy rubber pads.
Timing belt transfer glass. The machine has the characteristic of smooth and steady, easy to operation and maintenance, Glass thickness automatically adjustable.

I.Main technical data：

Wheels Placement:



Grinding head   Name     Data		Grinding head 1# rough grinding	Grinding head 2# rough grinding	Grinding head 3# chamfer angle	Grinding head 4# angle polishing	Grinding head 5# chamfer angle	Grinding head 6# angle polishing	Grinding head 7# rough grinding	Grinding head 8# polishing	Grinding head 9# polishing
motor	Power (KW)	2.2	2.2	1.5	1.5	1.5	1.5	2.2	2.2	1.5
	Speed	2800	2800	2800	2800	2800	2800	2800	2800	1400
Grinding wheel	Spec (mm)	Ф150×12  100 mesh	Ф150x12 240 mesh	Ф130×12    240 mesh	Ф130x60	Ф130×12   240 mesh	Ф130x60	Ф150×12 240 mesh	Ф150x70	Ф150x70
	Name	Diamond wheel	Diamond wheel	Resin wheel	10S40 Polishing wheel	Resin wheel	10S40 Polishing wheel	Resin wheel	10S40 Polishing wheel	X088 Polishing wheel

Production:

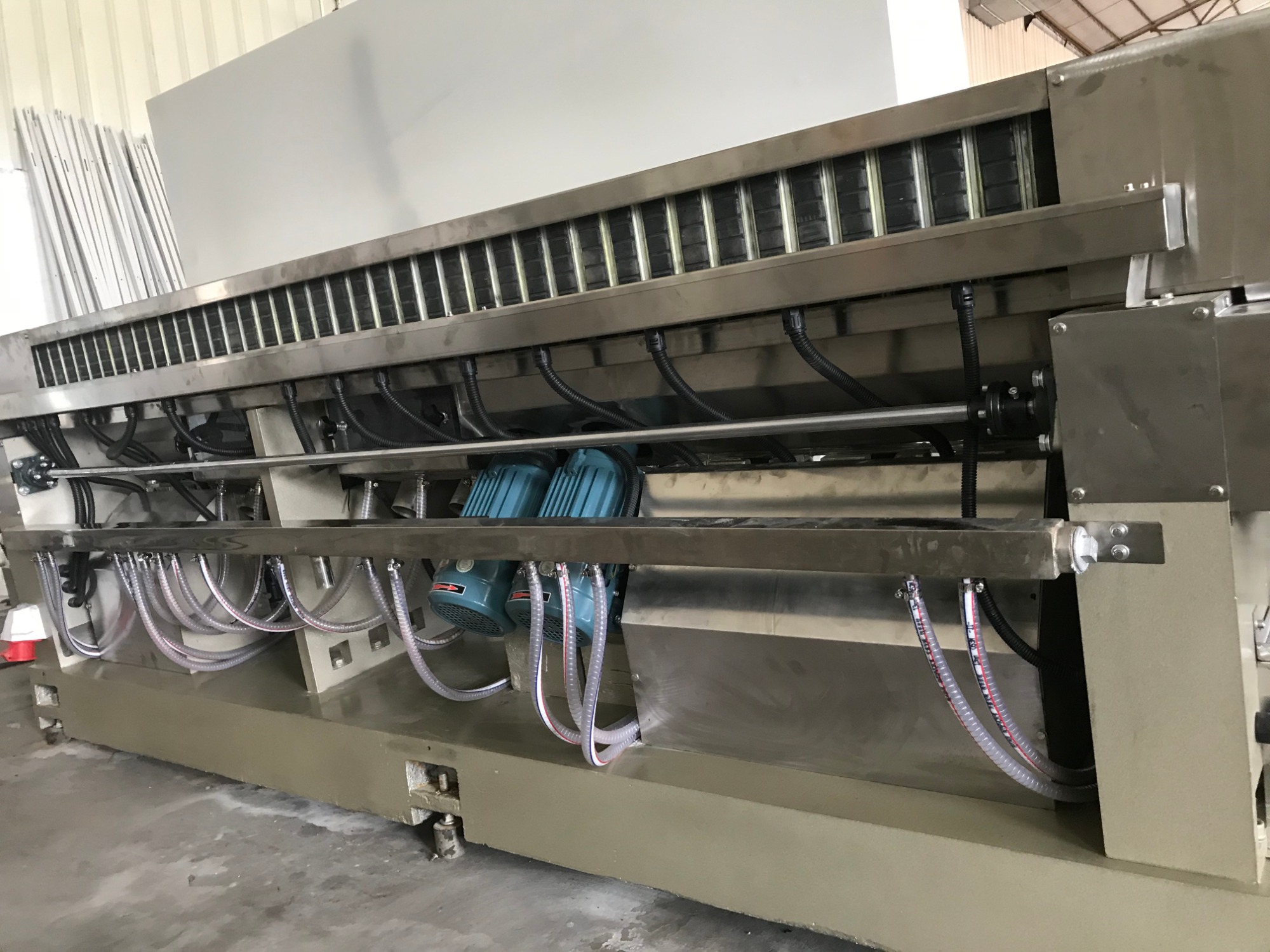

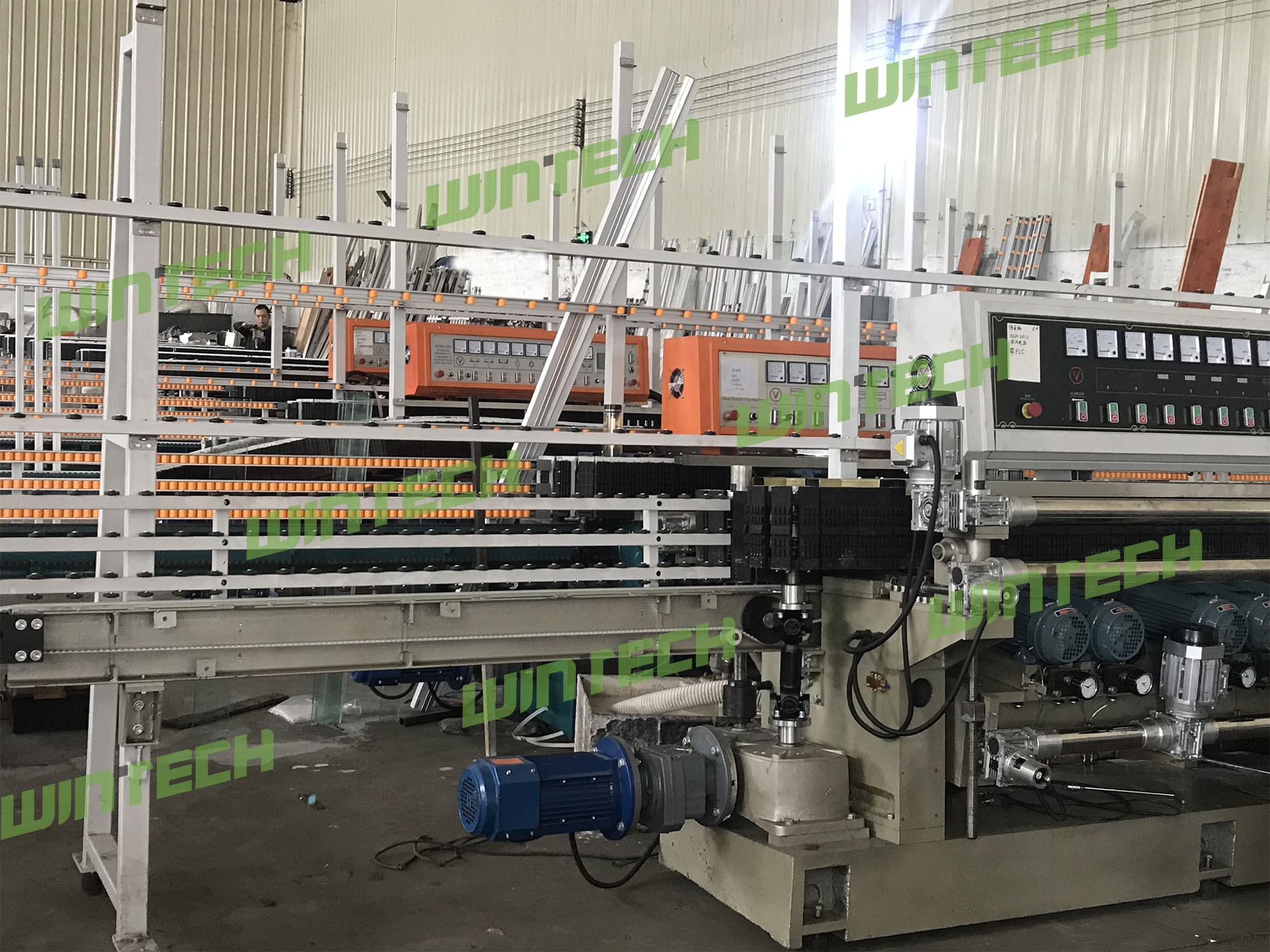

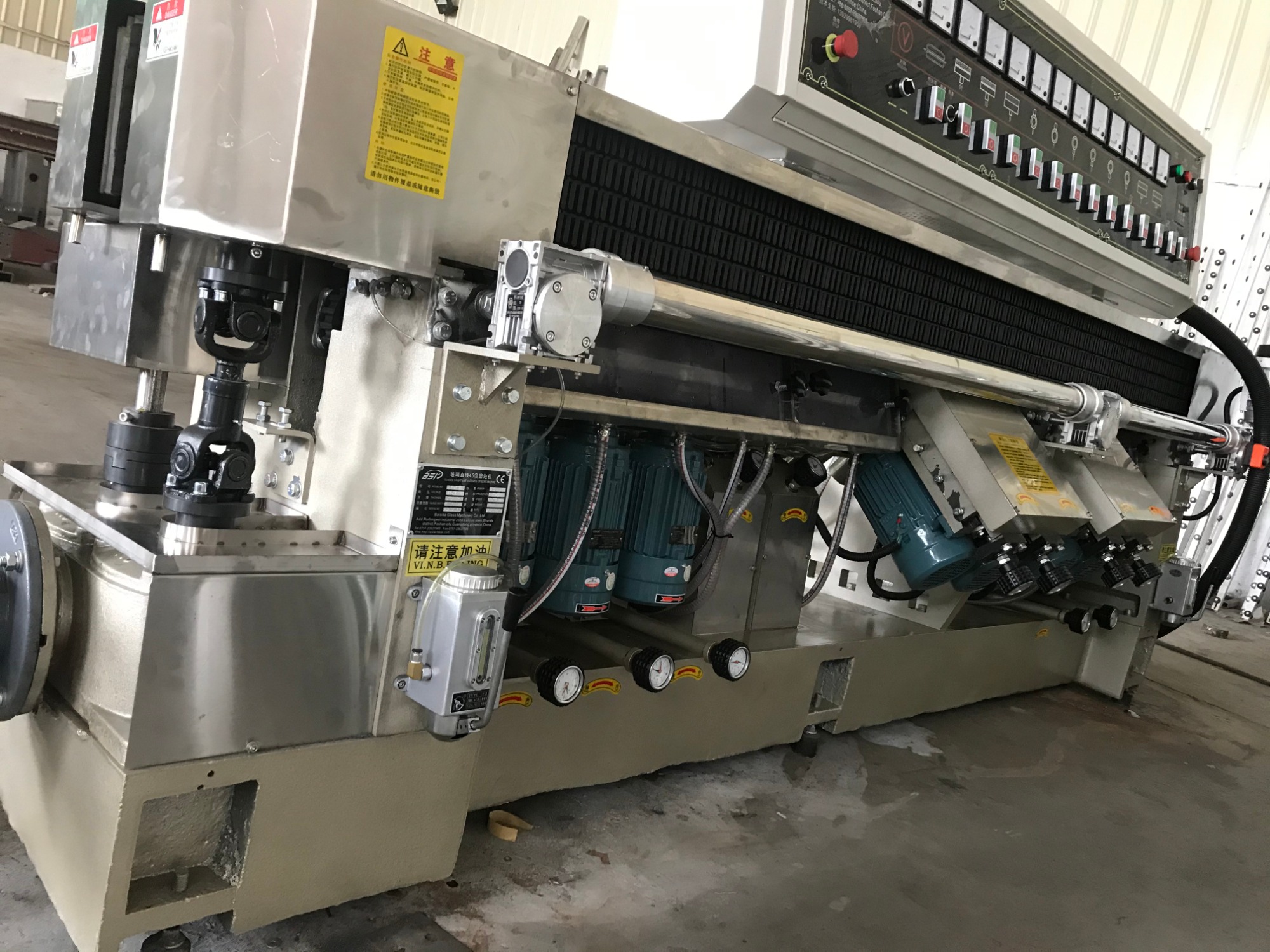

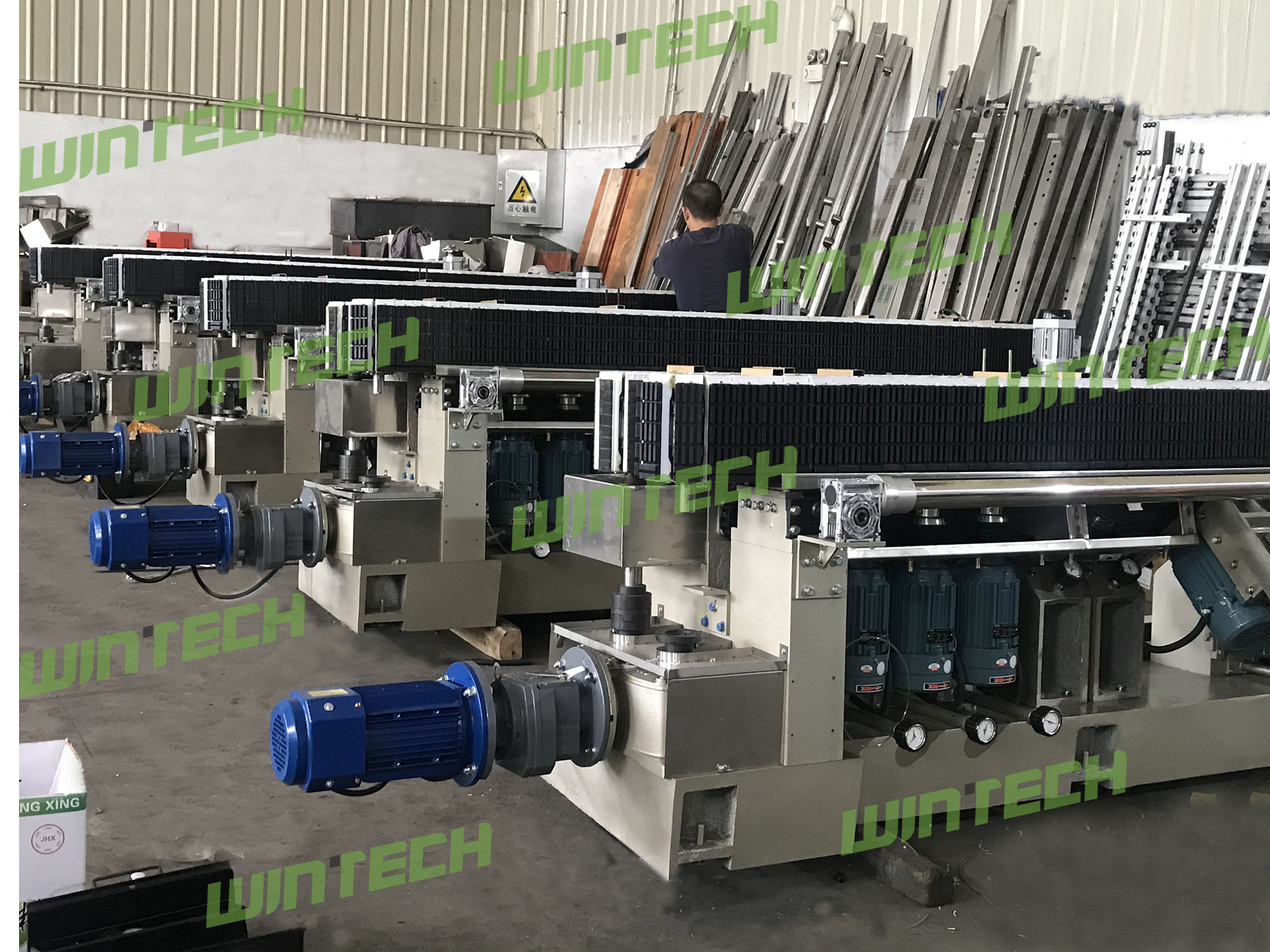

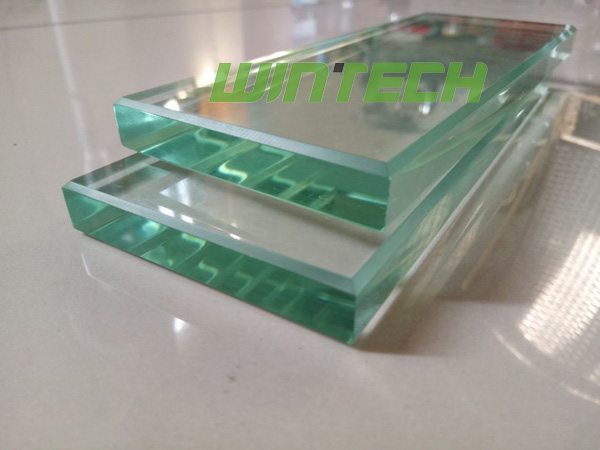

Processed Glass Pictures:

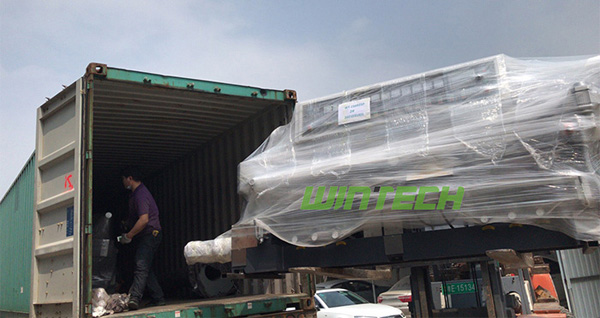

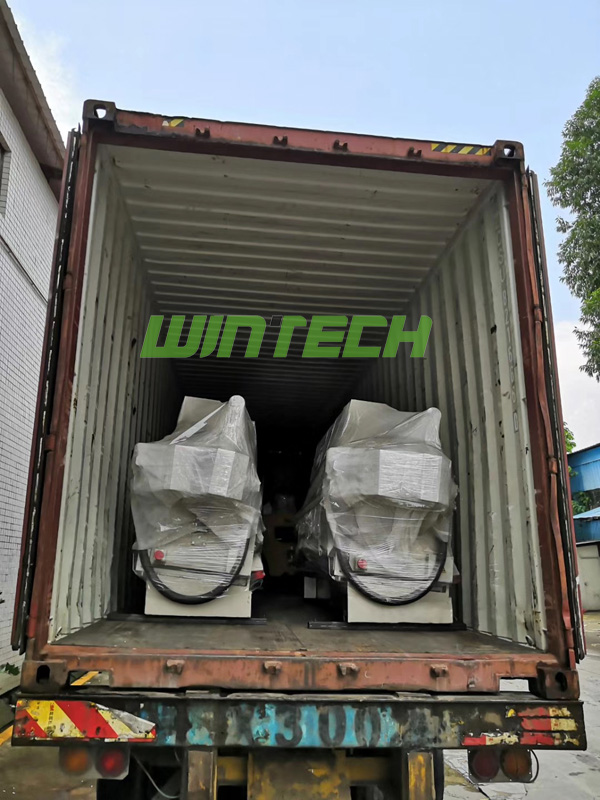

Packing & Loading Pictures:
