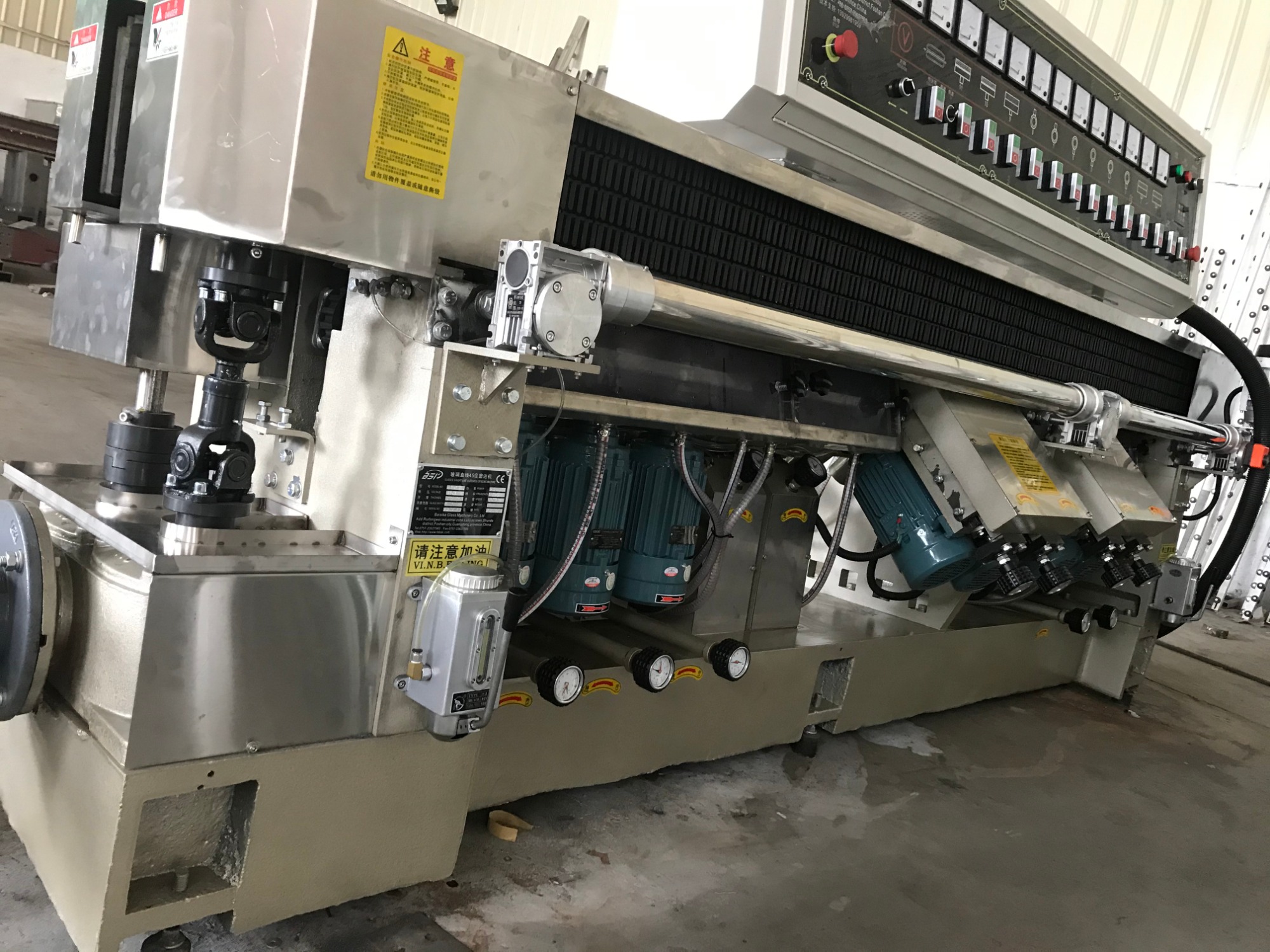

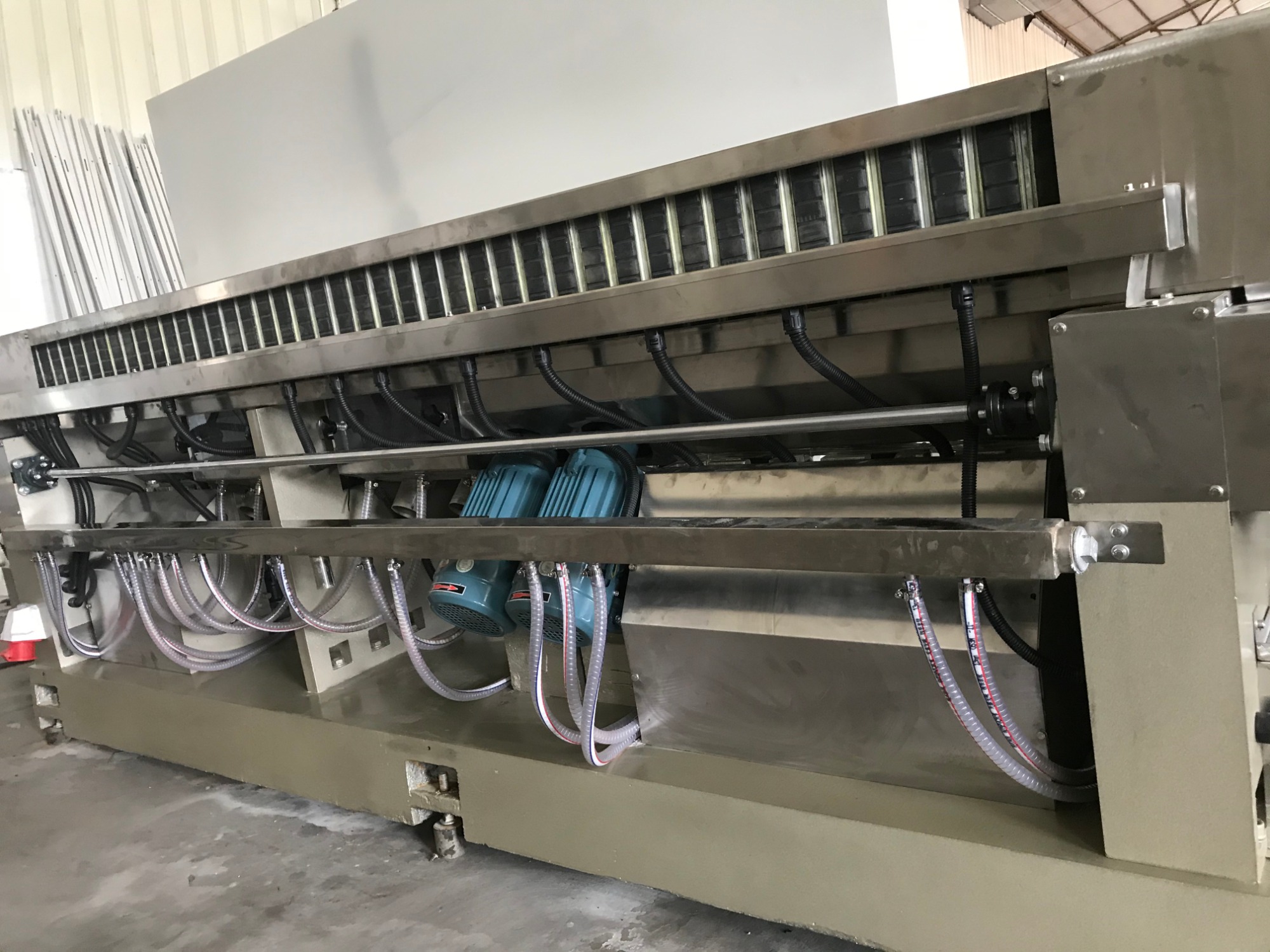

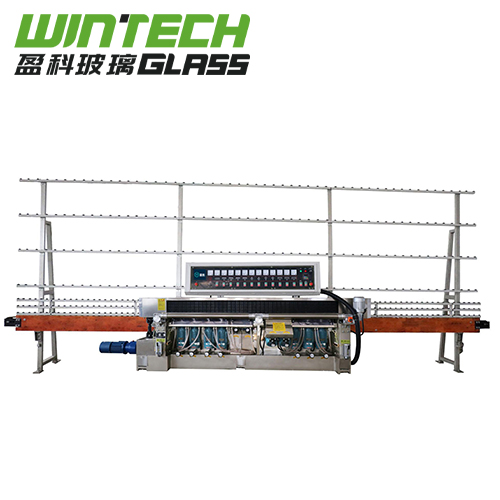

Description:
The machine is designed for grinding/polishing bottom edge and arris of flat glass. 7 wheels for bottom edging,2 wheels for front arris, 2 wheels for back wheels.
Conveyor adopts chain transmitting system consisting of special stretchy rubber pads.
Timing belt transfer glass. The machine has the characteristic of smooth and steady, easy to operation and maintenance, Glass thickness automatically adjustable.
I.Main technical data：
Max.Glass size
2500*2500mm
Min.Glass size
80*80mm
Glass thickness
3-25mm
Transmissinon speed
0.5-8m/min
Power
28KW
Weight
3300kg
Land occupation
7800×1000×2500mm
Power
380V/50HZ or Customized

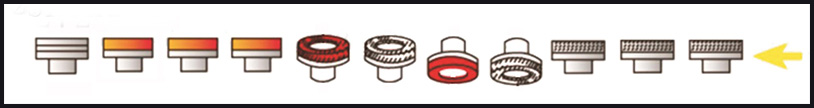

Wheels Placement:
Processed Glass Pictures:
Packing & Loading Pictures:
Production Pictures:
